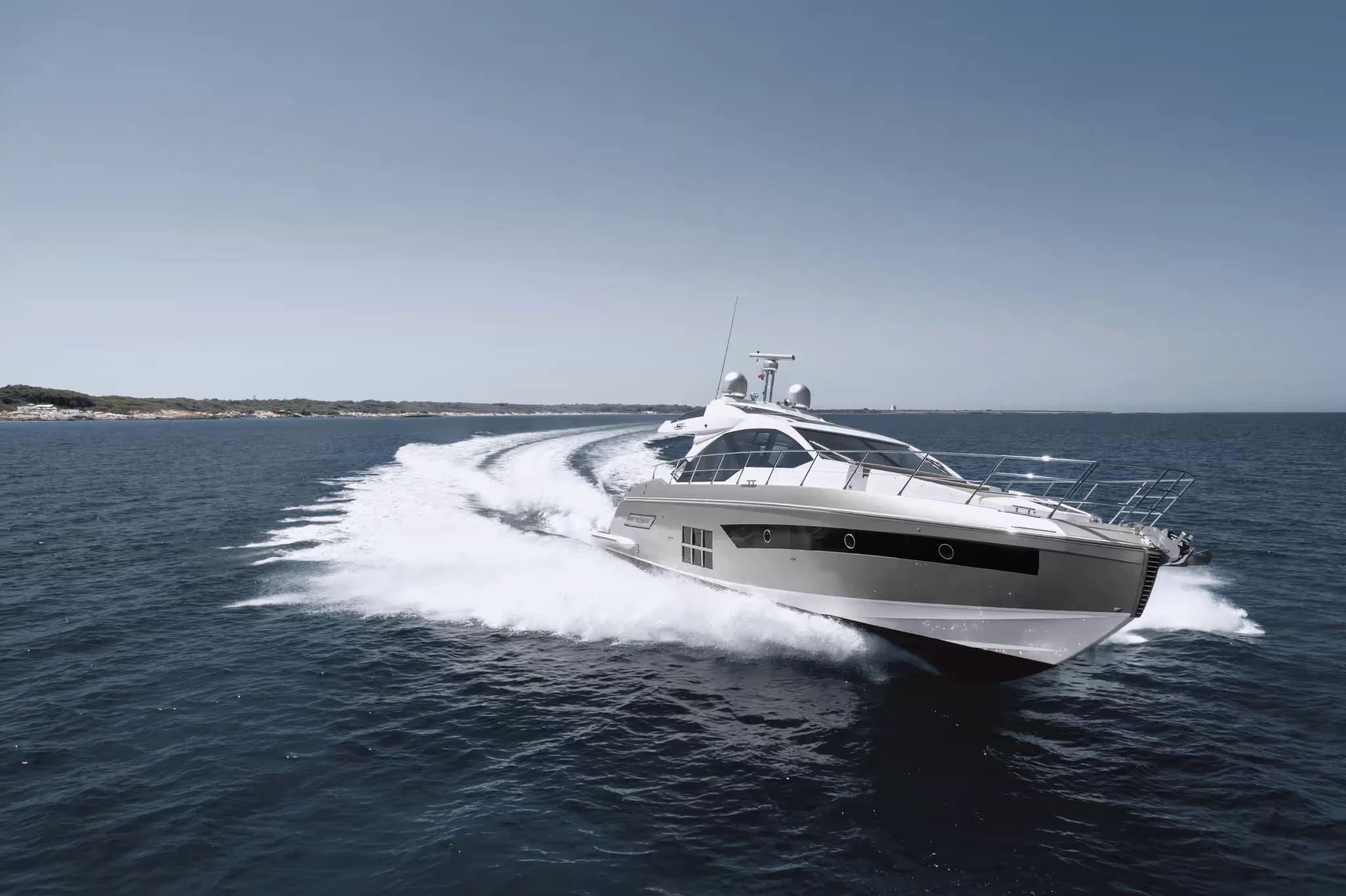

The Azimut S6 is engineered to deliver high performance through intelligent design.

By combining three Volvo Penta IPS 700 engines (each 550 hp) with a hull shaped for efficient water flow and significant use of carbon fibre in its upper structures, the S6 minimizes weight above the waterline and reduces roll.

The result is a craft capable of reaching about 35 knots in test conditions, yet behaving smoothly and responsively even in less than ideal seas.

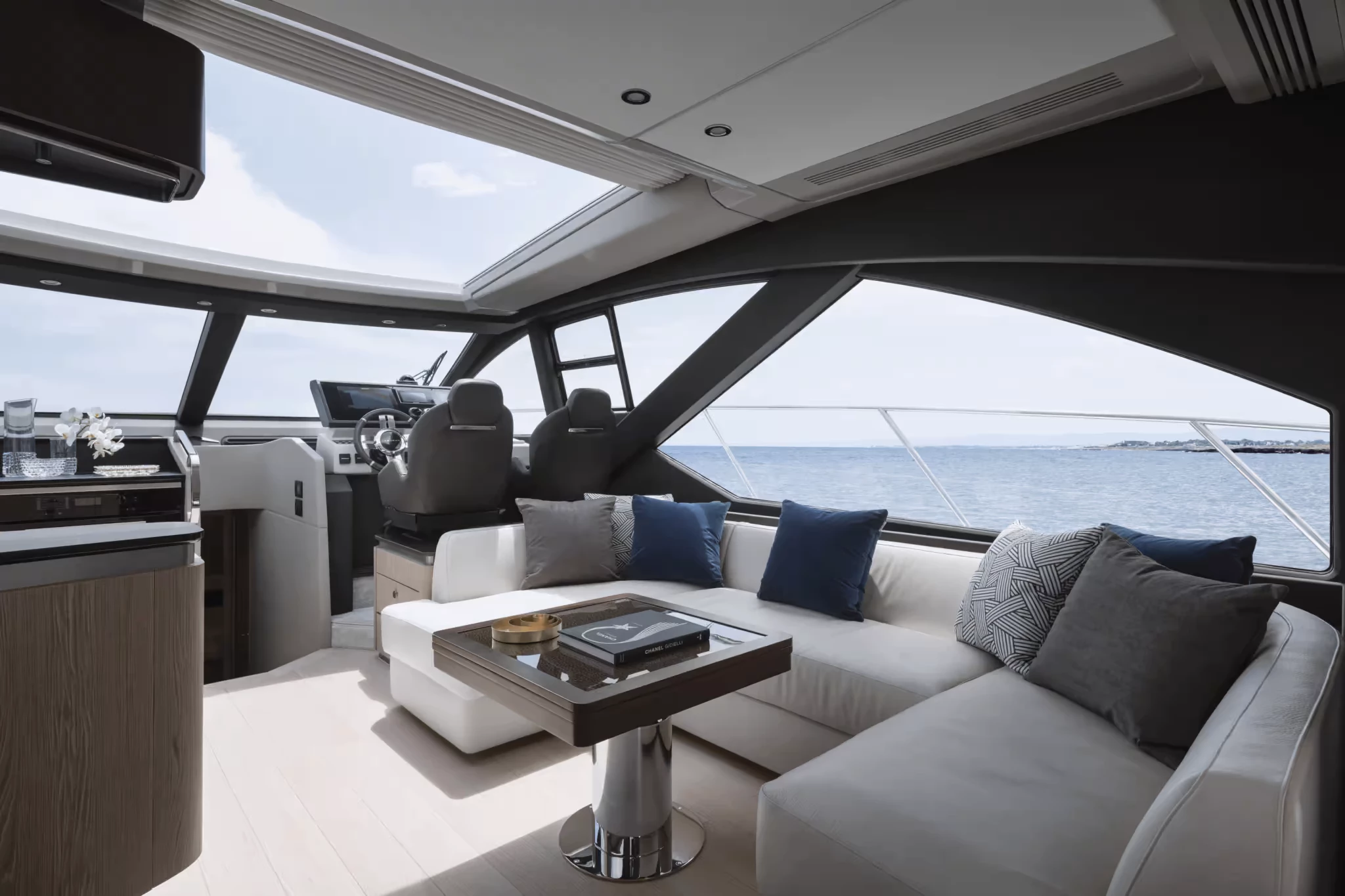

Inside, the S6 balances space and function. Its layout includes three guest cabins plus a crew cabin, accommodating six guests comfortably. Two full bathrooms serve guests, and there is a dedicated crew head. Natural light from wide hull windows and considered material selections contribute to a sense of openness without making compromises on structural integrity or performance.

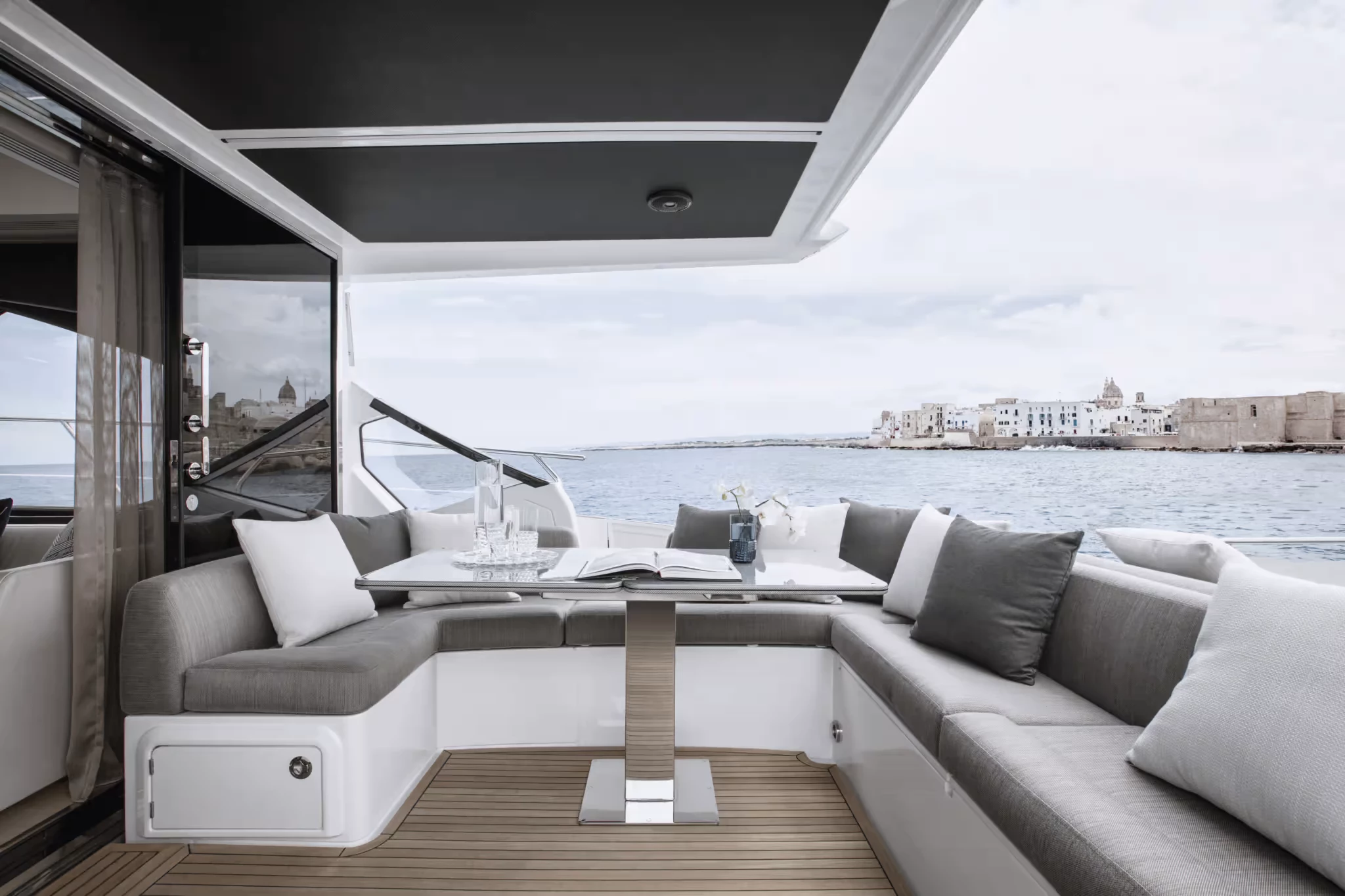

The deck plan supports both entertainment and utility. The standard hard-top version includes spacious cockpit dining and lounging areas; the Sportfly variant adds a second helm station overhead and more space for sun or shade, accessed via a retractable stair. A tender garage and hydraulic swim platform extend the functional space for water access and toy handling.

Operationally, the S6 is designed for ease of handling. Joystick control simplifies docking and low-speed manoeuvres; the triple IPS system combined with the lightweight build improves fuel efficiency and reduces vibration. Tankage supports extended cruising, with over 2,600 litres of fuel and nearly 600 litres of fresh water, offering range well suited to both coastal cruising and longer hops between ports.

Azimut S7 — Full Specifications

Model Azimut S7
Project Announcement 2017
Launch Date September 2017
Public Debut Cannes Yachting Festival 2017

Dimensions & Construction

Length Overall (LOA incl. pulpit) 21.37 m (70′ 1″)
Beam Max 5.15 m (16′ 11″)
Draft (full load) 1.69 m (5′ 7″)
Displacement (full load) Approx. 39 t
Hull Type Planing hull
Construction Material Carbon fibre + GRP
Certification CE Category A

Design & Builder

Builder Azimut Yachts
Exterior Designer Stefano Righini
Interior Designer Francesco Guida
Hull Designer P.L. Ausonio Naval Architecture & Azimut R&D

Accommodation

Guest Cabins 4 cabins
Guest Berths 8 guests
Crew Cabins 1 crew cabin
Total Berths 10 persons (8 guests + 2 crew)
Heads 4 guest heads + crew facilities

Propulsion & Performance

Engines 3 × Volvo Penta IPS 1050 — 800 hp each
Propulsion Volvo IPS pod drive system
Maximum Speed ≈ 35 knots
Cruising Speed ≈ 28 knots
Range Approx. 300 nmi at cruising speed

Capacities

Fuel Capacity 3,800 litres (≈ 1,004 US gal)
Fresh Water Capacity 1,000 litres (≈ 264 US gal)

Technology & Systems

Construction Technology Carbon-Tech superstructure for lower weight and improved efficiency
Helm Systems Integrated Garmin navigation and vessel management systems
Stabilization Advanced interceptor and gyro stabilization systems

Notable Features

  • Sleek low-profile sport yacht styling with aggressive exterior lines.
  • Carbon-fibre construction reducing roll and improving performance.
  • Open cockpit and salon layout with panoramic glazing.
  • Large hydraulic swim platform and beach club area.
  • Triple IPS propulsion delivering responsive handling and maneuverability.
  • Sport-focused design balanced with luxury cruising comfort.
  • Expansive outdoor lounging and sunbathing spaces.
