The Azimut Grande Trideck is the flagship of the Azimut fleet, designed to maximize both living space and seagoing performance.
At 38 meters in length, it introduces a bold interpretation of superyacht architecture, with an innovative triple-deck layout that creates an additional mezzanine “Sea View Terrace” — a semi-suspended aft deck that extends the boundaries of open-air living.

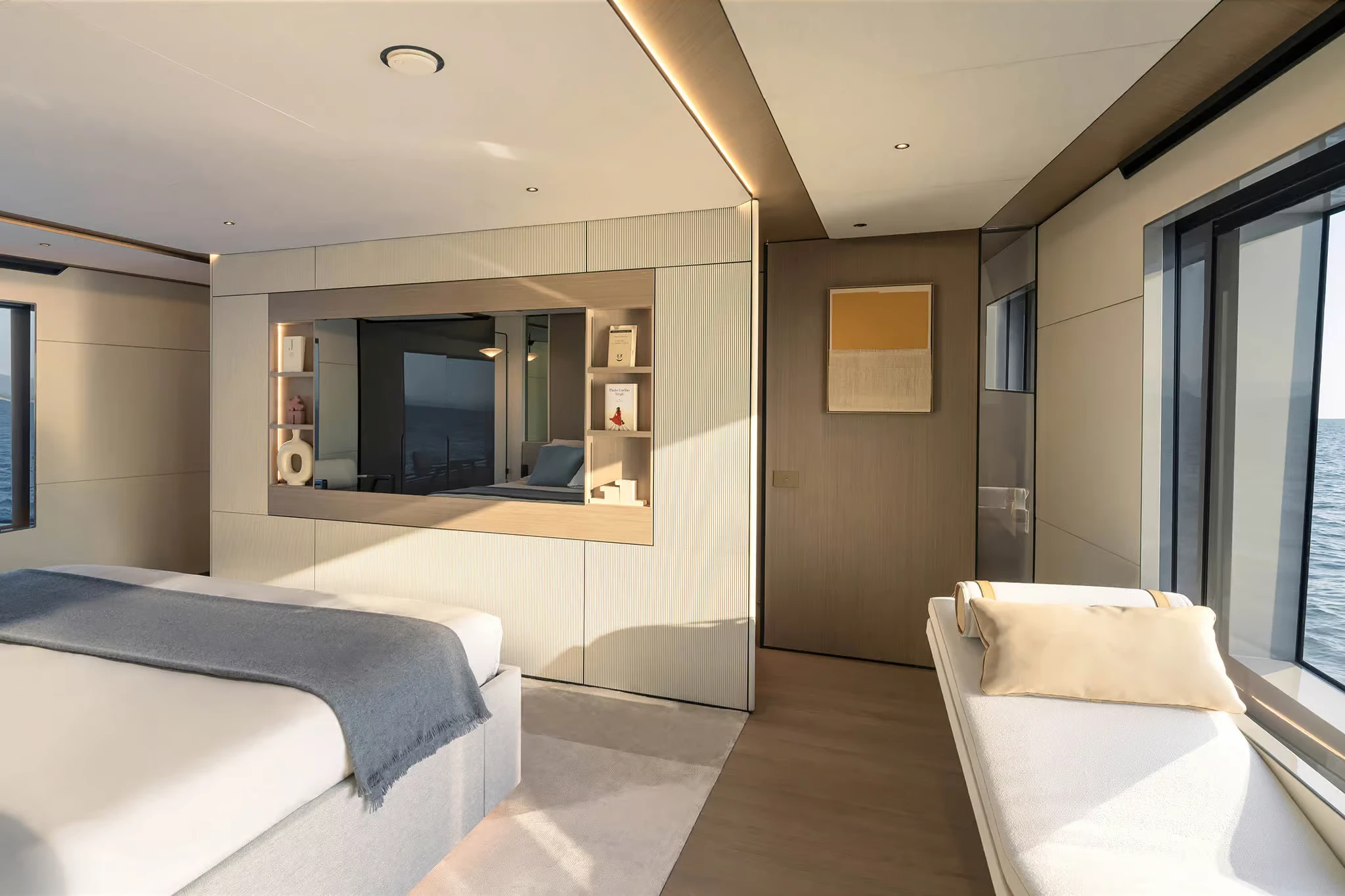

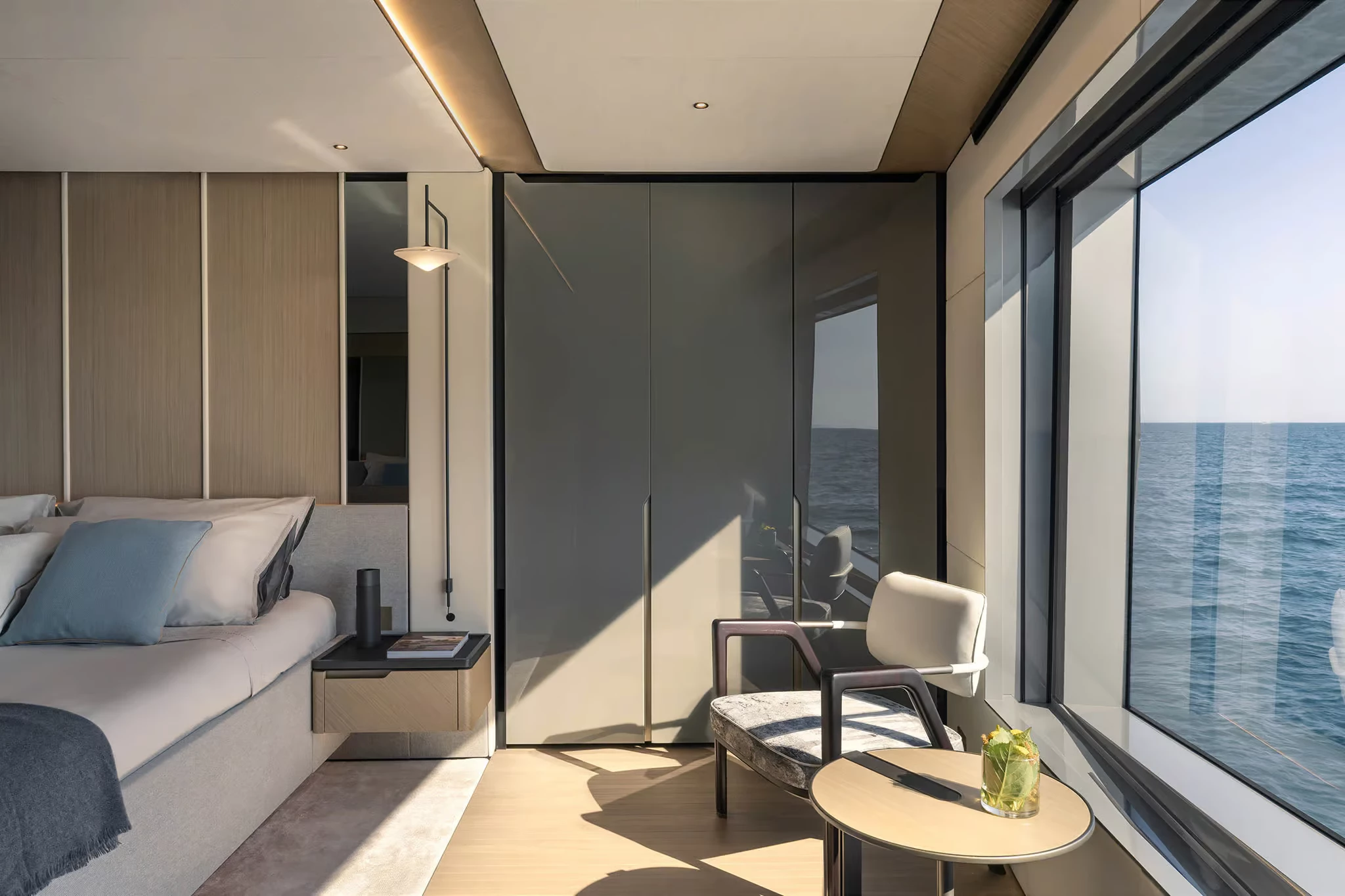

The exterior, styled by Alberto Mancini, balances sleek lines with generous volumes, while Achille Salvagni’s interior design reflects contemporary Italian elegance through soft curves, natural light, and carefully chosen materials. Five guest cabins, including a full-beam owner’s suite on the main deck, offer privacy and luxury, supported by ample crew quarters with separate access for discreet service.
Performance is assured by twin MTU engines paired with the advanced D2P hull design, allowing for efficient long-range cruising and planing capability when speed is desired. A maximum speed of around 24 knots complements an extended range of over 1,700 nautical miles at economical speed, making the Trideck suitable for both coastal cruising and longer passages.

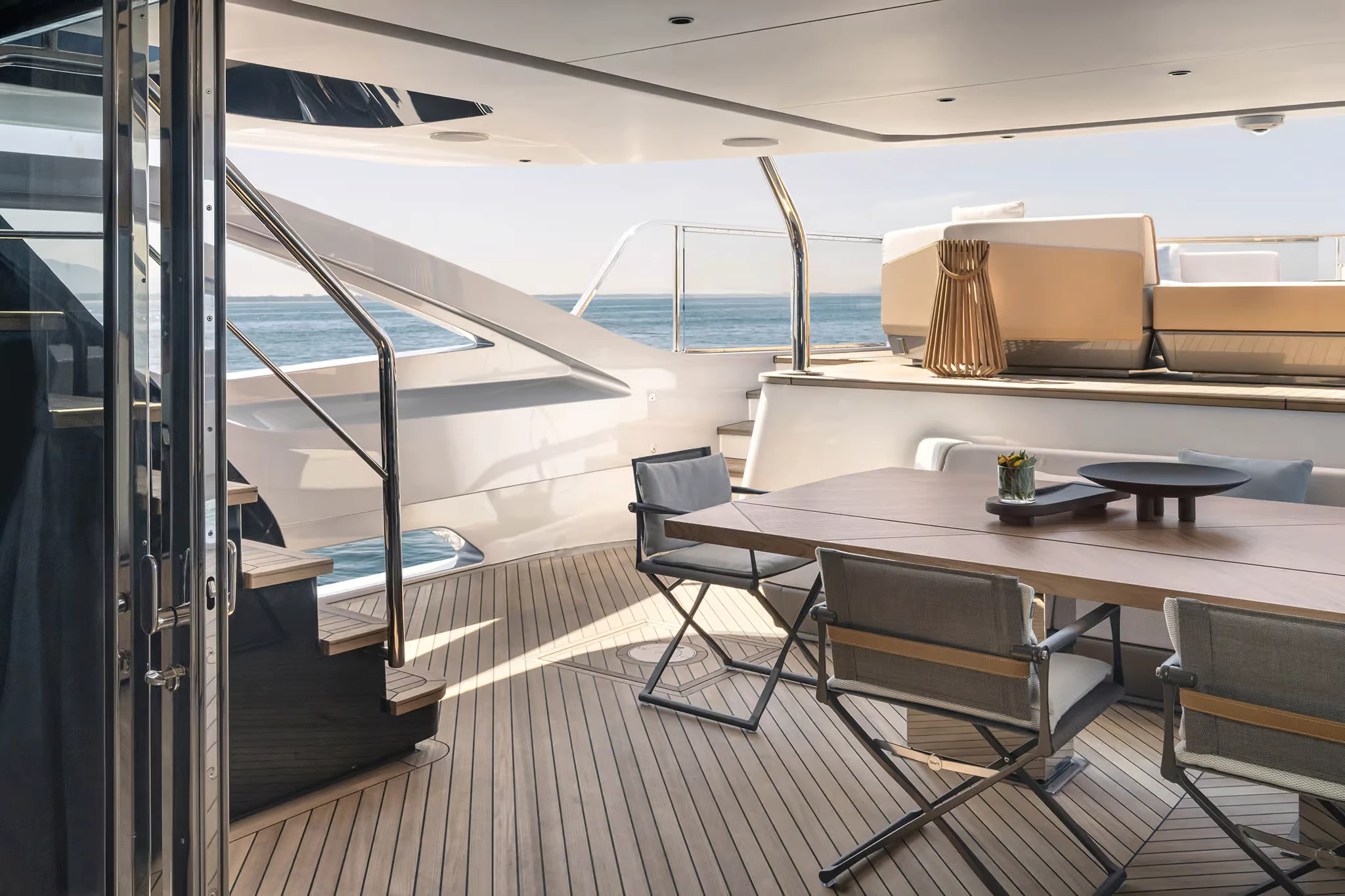

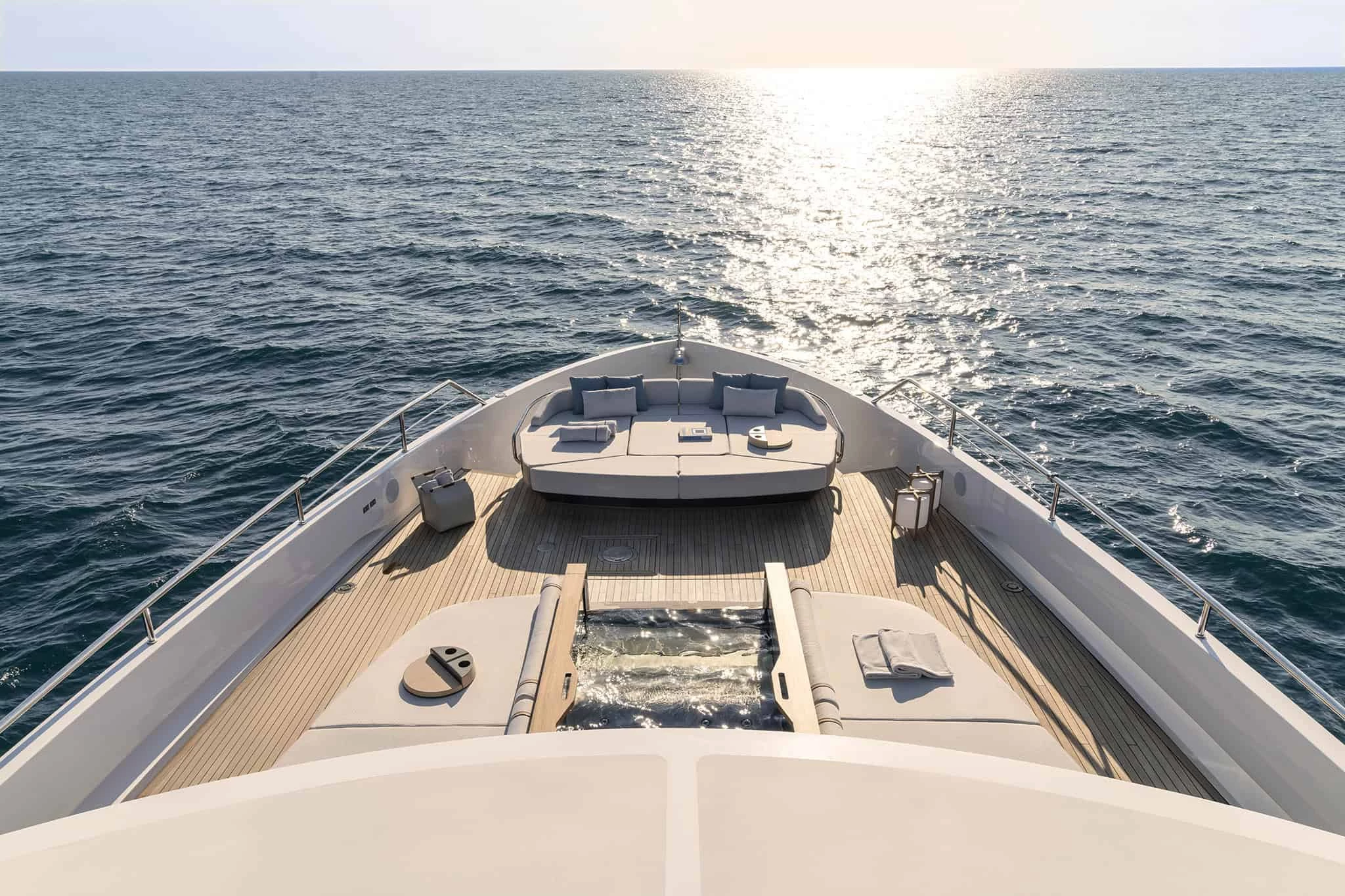

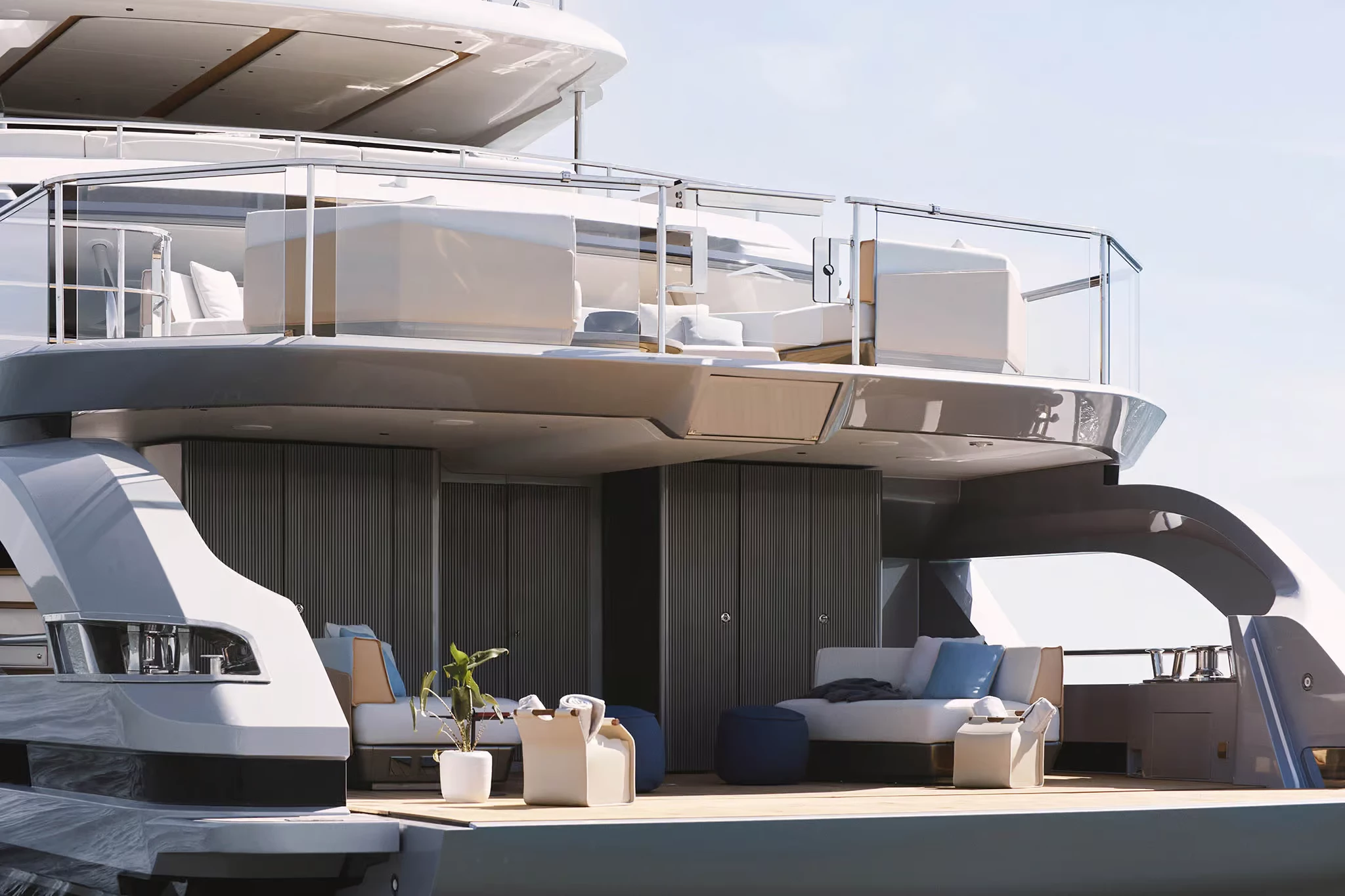

Outdoor areas are a defining feature, from the vast beach club with fold-down terraces to the sundeck with jacuzzi and panoramic views. Dining and lounge options are spread across multiple decks, ensuring flexibility for entertaining or private relaxation. The Grande Trideck represents Azimut’s vision of innovation at scale — a superyacht that combines grandeur, versatility, and comfort in a dynamic new way.
Azimut Grande Trideck Specifications
Azimut Grande Trideck — Full Specifications |
|
|---|---|
| Model Name | Azimut Grande Trideck |
| Builder & Design | Builder: Azimut Yachts (Italy) Exterior Designer: Alberto Mancini Interior Designer: Achille Salvagni Naval Architecture: Pierluigi Ausonio Naval Architecture & Azimut R&D Dept. |
| Construction & Materials | GRP hull with carbon fibre reinforced elements (Carbon-Tech) in superstructure |
Dimensions & Hull |
|
| Length Overall (LOA) | 38.22 m (125′ 5″) |
| Beam (Max) | 7.98 m (26′ 2″) |
| Draft (Full Load) | 2.05 m (6′ 9″) |
| Displacement (Full Load) | ˜ 220 t |
| Gross Tonnage | ˜ 295 GT |
| Hull Type | D2P (Displacement to Planing) hull with wave-piercer bow |
| Certification | CE Category A; RINA Pleasure / Class |
Accommodation / Layout |
|
| Guest Cabins | 5 |
| Guest Berths | 10 |
| Guest Heads / Bathrooms | 5 en-suite + day heads |
| Crew Cabins | 4 |
| Crew Berths | 6–7 |
| Crew Heads | 4 |
Propulsion & Performance |
|
| Engines | 2 × MTU 16V 2000 M93, 2,400 hp each (other options available) |
| Maximum Speed | ˜ 24 knots |
| Cruising Speed | 19 knots |
Tank Capacities & Range / Consumption |
|
| Fuel Capacity | 23,000 litres (6,076 US gal) |
| Fresh Water Capacity | 3,000 litres (792 US gal) |
| Black / Grey Water Tanks | ˜ 2,000 litres combined |
| Range | Up to 1,700 nautical miles at 12 knots (economical speed) |
Miscellaneous / Features |
|
| Deck & Special Features | Unique triple-deck layout (mezzanine level “Sea View Terrace”) Expansive beach club with fold-down platforms Full-beam owner’s suite on main deck with floor-to-ceiling windows Private sundeck with jacuzzi and lounge areas Dedicated dining terrace on upper deck Side tender garage Optional pool on aft terrace Carbon-Tech construction for improved performance and stability CMC Marine Waveless STAB™ stabilizers |
